The debug mode

Debug mode is quite handy for debugging component symbols. It displays the anchors of Markables in as coloured rings according to the following: [1]

Anchor type

Colour

Centre

Purple

Label

Red

Annotation

Blue

Terminal end

Green

Current label

Orange

Voltage label

Yellow

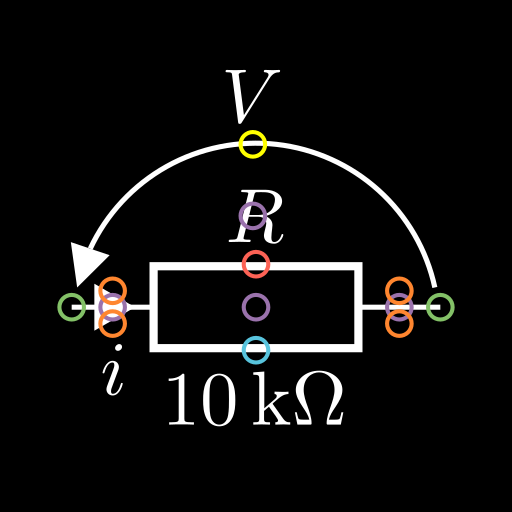

As a visual example, here is a resistor with a current and voltage arrow when rendered in debug mode.

../_images/DebugExample-1.png

Note

As terminals and voltage arrows are also Markable instances, they also have purple centre anchors!

Activating the debug mode

To activate debug mode, set the debug configuration option to True:

config_eng.debug = True
# your code here...

or

with tempconfig_eng({"debug": True}):
    # your code here...

are your best in-code bets, though you can always use config files as well. See the configuration guide for more details on the configuration system.
